- Product Name: Double Knife Cylinder Cloth Strip Cutting Machine
- Model NO.: KT-ATC-A2
- Origin: CHINA
- Packing: CARTONS
- Brand Name: KUTEX
- Minimum Order: 1
- Quality System Certification: CE
-
Product Details: Double Knife Cylinder Cloth Strip Cutting Machine
KT-ATC-A2 double knife cylinder cloth strip cutting machine is the new product that we produce with Korean latest technique. It is mainly suitable for cutting the cylinder cloth fabric such as plumule, sweat cloth, elasticity cloth, mixed cotton cloth, it will make various width cloth strips, applicable to tape attaching, collapsible attaching, color inlaid, strip inlaid and inserting strip for dress, underwear, etc. All the thin, medium and thick materials can be cut, Cutting speed, strip width of cloth, and right and left position of grey cloth cylinder can be adjusted optionally. It is ideal equipment for cutting cloth strip.
◆Characteristic
·Latest Korean technology makes the output increased 100%.
·Panel size and cloth tube can be adjusted optionally.
·Equipping frequency conversion adjustment system, so that the cutting speed can be adjusted optionally.
·Equipping three specification mop tubes like big, medium and small diameter, which can applicable to cut various caliber cloths.
·Cloth cutting with double knifes which makes cutting calmly and quickly, as well as greatly increase the productive efficiency.
·It can be equipped assistant mop tubes device, which makes cutting special cloth and big caliber cloth more calm and smooth.
◆Main technical parameters
·The cylinder of grey cloth contain φ600mm~φ1300mm
·Cutting width of a strip of cloth 10mm~120mm
·Cutting speed 50/min
·Width error of a strip of cloth ±0.5mm
-

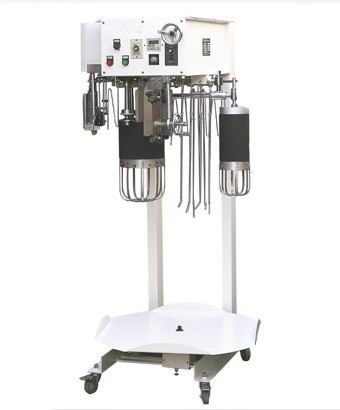

Product Images: Double Knife Cylinder Cloth Strip Cutting Machine
-
