Automatic Cold Knife Tape Cutter with Punching Hole and Collecting Device

  • Product Name:  Automatic Cold Knife Tape Cutter with Punching Hole and Collecting Device
  • Model NO.:  KT-150L
  • Origin:  China
  • Packing:  CARTONS
  • Brand Name:  KUTEX
  • Delivery Time:  1 Week
  • Minimum Order:  1 pc
  • Quality System Certification:  CE
  • Product Details:  Automatic Cold Knife Tape Cutter with Punching Hole and Collecting Device

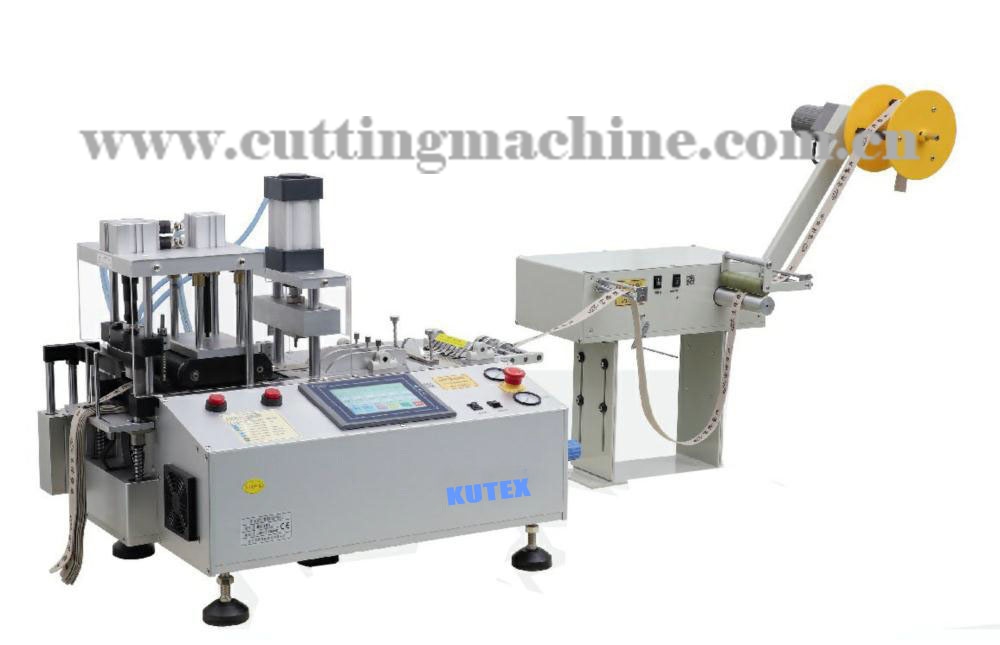

KUTEX  Automatic Tape Cutting Machine Cold Knife Multi-function with Punching Hole and Collecting Device

Applications: All kinds of Woven Belt, Webbing, Ribbon Tapes, Zippers, Leather Belts, VELCRO, Shoelace, Plastic Soft Tube, Computer Cable, Labels, etc...
High Speed: It can cut 80-100 pcs per minute (e.p. 100mm long, with collecting device).
Accuracy: Cut-length is accurate owing to a stepping motor. A sensor makes cut-length accurate by automatic sensing at set-position.

Collecting Function: Setting the quantity, it will be collecting automatically, so that clients can be easily packed.
Punching Device: According to the needs of users, it can punching different size of the diameter of holes.
Cutting Type: The blade is made of high quality steel. to make sure the cutting surface neatly and not frayed.
Automatic Operation: It works automatically only by setting length, quantity.
Computerized: Automatic work and stop, The special fault by self-diagnosis. Direct show the fault problem on the screen, it will easy for you to find clear way to repair.
Automatic Stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set quantity and set speed are not erased even if power off and on.

Cutting Samples:

Automatic Tape Cutter with Punching Hole and Collecting Device

Specifications:



Model No.: KT-150L
Cutting Length (mm) 20-99999
Max.Cutting Width (mm) 100
Voltage 110/220V
Punching Hole Diameter 2-5 mm
Recommended Presser (Mpa) 20-50
Max.Collecting Height (mm) 40
Weight 78 Kgs
Packing Size 80x57x62cm
Power 0.25KW
100mm Cutting Speed (p/min) 100pcs
